Single & Dual Directional Couplers

  • Series: C160 Series / C200 Series
  • Category:

M.E.C.’s ultra-flat, directional couplers are compact, in-line devices that exhibit flat coupling over multi octave bands.  The coupling response is finely tailored to yield optimal flatness, directivity, and unit-to-unit tracking, making these versatile couplers useful for both system and laboratory applications.

  • High Power
  • Broad Bandwidth
  • Flat Coupling

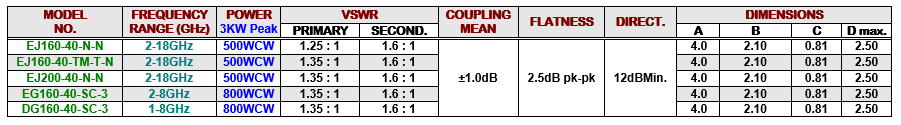

Specifications

  • Directivity: 13 dB min., 17 dB typ.
  • Coupling: 30 to 60 dB
  • Coupler Mean: ±1.0 dB
  • Flatness: ±2.5 dB peak to peak max.
  • VSWR: Main Line 1.35:1 typ. / Coaxial Secondary 1.4:1 typ.
  • Insertion Loss: 0.30 dB max.
  • Mounting: Fins all tapped standard 6-32 UNC-2B

Order and Sales Information

(1) Specify the following as a minimum:

  • Frequency Range
  • Power level, CW, Peak and Average
  • Coupling Level(s)
  • In/Out and Coupled Connectors

(2) Other connectors, lengths, and coupling directions available upon request.
